AA150AC01 Mitsubishi 15.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA150AC01 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -40 ~ 85°C , a storage temperature range of -40 ~ 90°C . This Mitsubishi TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AA150AC01 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 355.68(W)×133.38(H) mm, outline size of 374.5(W)×154.5(H) mm, with surface treament of Antiglare, net weight of TBD. As a IPS, Normally Black, Transmissive LCM product, AA150AC01 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. AA150AC01 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA150AC01 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
15.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1920(RGB)×720, 137PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
355.68(W)×133.38(H) mm |
|
Outline Size |
374.5(W)×154.5(H) mm |
|
Surface |
Antiglare |
|
Brightness |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
IPS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Display Colors |
16.7M 70% NTSC |
|
Lamp Type |
WLED , 30K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
TBD |
|
Signal Interface |
LVDS (1 ch, 8-bit) |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |

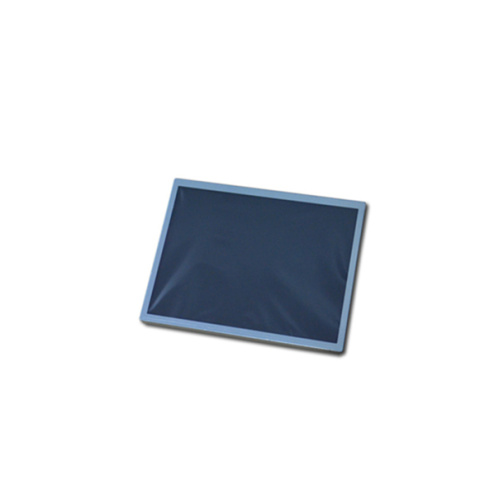

Product Picture:
