AA190EB02DDE11 Mitsubishi 19.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA190EB02DDE11 is a 19.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen PCAP. This Mitsubishi TFT-LCD is a 19.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA190EB02DDE11 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 404.2(W)×330(H) mm. As a TN, Normally White, Transmissive LCM product, AA190EB02DDE11 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA190EB02DDE11 utilizes LVDS (2 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AA190EB02DDE11
Panel Brand	Mitsubishi
Panel Size	19.0"
Resolution	1280(RGB)×1024, SXGA, 86PPI
Display Area	376.32(W)×301.056(H) mm
Outline Size	404.2(W)×330(H) mm
Brightness	400 cd/m² (Typ.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Colors	262K/16.7M 50% NTSC
Frequency	60Hz
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	4/12 (Typ.)(Tr/Td)
Lamp Type	WLED , 100K hours , With LED Driver
Touch Screen	PCAP
Signal Interface	LVDS (2 ch, 6/8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

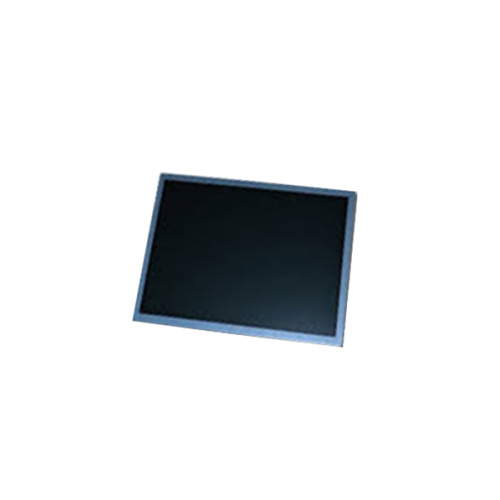

Product Picture:

AA190EB02DDE11
