AA084SD11-DA2 Mitsubishi 8.4 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

AA084SD11-DA2 is a 8.4 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, touch screen PCAP, Air Bonding. This Mitsubishi TFT-LCD is a 8.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20140818 which was released out on 8 18 2014, AA084SD11-DA2 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 209.5(W)×159(H)×15.4(D) mm, with surface treament of Clear, Hard coating (5H), net weight of 490g (Typ.). As a TN, Normally White, Transmissive LCM product, AA084SD11-DA2 can provides 960 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA084SD11-DA2 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	AA084SD11-DA2
Manufacturer	Mitsubishi
Screen Size	8.4 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	800(RGB)×600 (SVGA) 119PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	170.4 × 127.8 (H×V)
Outline(mm)	209.5 × 159 × 15.4 (H×V×D)
Treatment	Clear, Hard coating (5H)
Luminance	960 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Response	4/12 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 40% NTSC
Backlight	2 strings WLED , 100K hours , No Driver
Mass	490g (Typ.)
Refresh Rate	60Hz
Touchscreen	PCAP, Air Bonding
Signal Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C

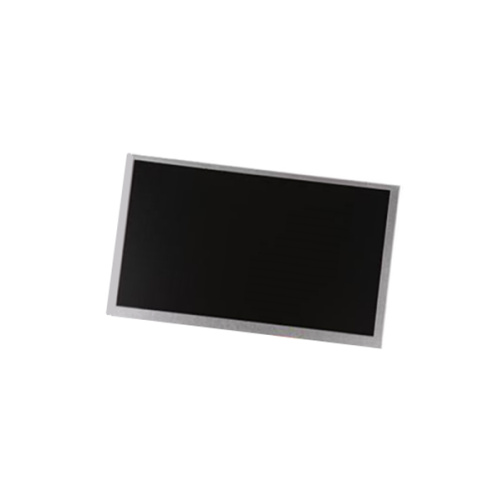

Product Picture:

AA084SD11-DA2
