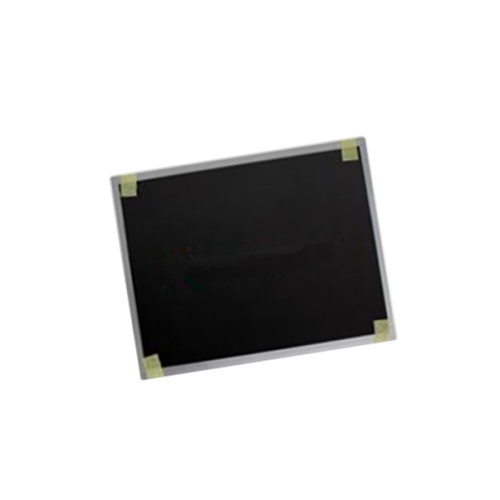

AC121SA04 Mitsubishi 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AC121SA04 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Mitsubishi TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20180802 which was released out on 8 2 2018, AC121SA04 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 260.5(W)×203(H)×10(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 580g (Typ.). As a TN, Normally White, Transmissive LCM product, AC121SA04 can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. AC121SA04 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AC121SA04 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
12.1 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×600 (SVGA) 82PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
246 × 184.5 (H×V) |
|
Outline(mm) |
260.5 × 203 × 10 (H×V×D) |
|
Bezel Area(mm) |
249.0 × 187.5 (H×V) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
500 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/60/80 (Typ.)(CR≥10) |
|
Response |
10/15 (Typ.)(Tr/Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K/16.7M 72% NTSC |
|
Backlight |
WLED , 70K hours , With LED Driver |
|
Mass |
580g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
