AA106TA51 Mitsubishi 10.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA106TA51 is a 10.6 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 10.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA106TA51 supports display 768(RGB)×1280 (WXGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 138.8(W)×231.4(H) mm, outline size of 157(W)×250(H) mm, with surface treament of Clear, net weight of 420g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA106TA51 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA106TA51 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA106TA51 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
10.6" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
768(RGB)×1280, WXGA, 140PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
138.8(W)×231.4(H) mm |
|
Outline Size |
157(W)×250(H) mm |
|
Surface |
Clear |
|
Brightness |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
SWV, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Display Colors |
262K/16.7M 50% NTSC |
|
Lamp Type |
WLED , 100K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
420g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |

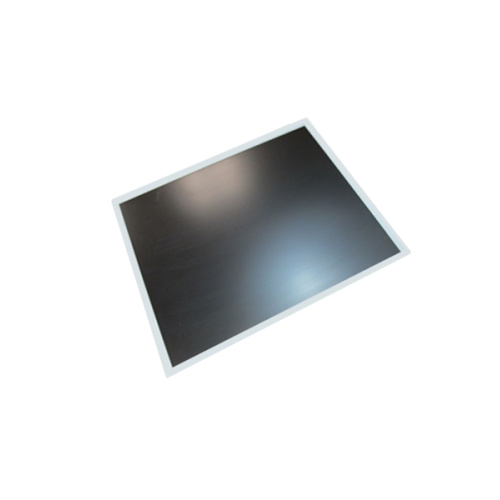

Product Picture:
