AA084XD51 Mitsubishi 8.4 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA084XD51 is a 8.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without touch screen. This Mitsubishi TFT-LCD is a 8.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA084XD51 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.496(W)×127.872(H) mm, outline size of 199.5(W)×149(H) mm, with surface treament of Antiglare, net weight of 340g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA084XD51 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm and have a working life time of 100K hours. AA084XD51 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm with power supply voltage of 3.3V (Typ.).

We are able to offer AD board for this display to support VGA video input.

Panel Model	AA084XD51
Panel Brand	Mitsubishi
Panel Size	8.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA, 152PPI
Pixel Format	RGB Vertical Stripe
Display Area	170.496(W)×127.872(H) mm
Outline Size	199.5(W)×149(H) mm
Surface	Antiglare
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	SWV, Normally Black, Transmissive
Best View on	Symmetry
Display Colors	262K/16.7M 50% NTSC
Lamp Type	WLED , 100K hours
Touch Screen	Without
Panel Weight	340g (Typ.)
Signal Interface	LVDS (1 ch, 6/8-bit)
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

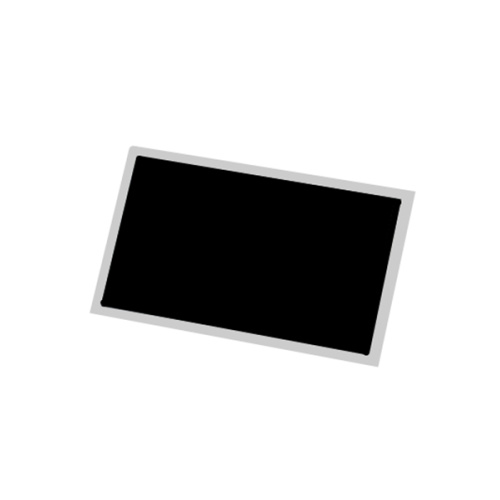

Product Picture:

AA084XD51
