AA070ME01-CJ1 Mitsubishi 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA070ME01-CJ1 is a 7.0 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, With LED Driver, touch screen PCAP, Optical Bonding. This Mitsubishi TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20140717 which was released out on 7 17 2014, AA070ME01-CJ1 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 189.8(W)×129.7(H) mm, viewing area size of 153.4(W)×92.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 460g (Typ.). As a TN, Normally White, Transmissive LCM product, AA070ME01-CJ1 can provides 900 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA070ME01-CJ1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA070ME01-CJ1 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
7.0 inch |
|
Pixel Number |
800(RGB)×480 (WVGA) 133PPI |
|
Active Area(mm) |
152.4 × 91.44 (H×V) |
|
Bezel Area(mm) |
153.4 × 92.4 (H×V) |
|
Luminance |
900 (Typ.)(cd/m²) |
|
Viewing Angle |
80/80/60/80 (Typ.)(CR≥10) |
|
Good View at |
12 o'clock |
|
Color Depth |
262K/16.7M 50% NTSC |
|
Mass |
460g (Typ.) |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
189.8 × 129.7 (H×V×D) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Contrast Ratio |
600 : 1 (Typ.) (TM) |
|
Work Mode |
TN, Normally White, Transmissive |
|
Response |
4/12 (Typ.)(Tr/Td) ms |
|
Backlight |
WLED , 100K hours , With LED Driver |
|
Touchscreen |
PCAP, Optical Bonding |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C |

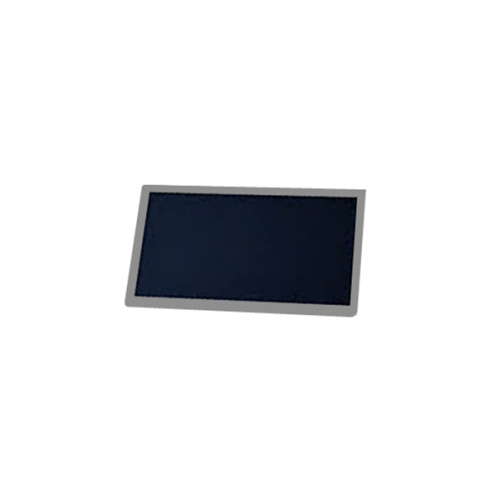

Product Picture:
