AA065VD12-DA1 Mitsubishi 6.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA065VD12-DA1 is a 6.5 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, touch screen PCAP, Air Bonding. This Mitsubishi TFT-LCD is a 6.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA065VD12-DA1 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 132.48(W)×99.36(H) mm, outline size of 170.2(W)×132.6(H) mm, with surface treament of Antireflection, net weight of 300g (Typ.). As a TN, Normally White, Transmissive LCM product, AA065VD12-DA1 can provides 1000 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/19 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 40% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA065VD12-DA1 utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AA065VD12-DA1 |
|
Brand |
Mitsubishi |
|
Diagonal Size |
6.5 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
640(RGB)×480 [VGA] 122PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
132.48(H)×99.36(V) mm |
|
Outline Dim. |
170.2(H)×132.6(V) mm |
|
Treatment |
Antireflection |
|
Luminance |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
600:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
6/19 (Typ.)(Tr/Td) |
|
Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K 40% NTSC |
|
Light Source |
WLED , 100K hours , W/O Driver |
|
Weight |
300g (Typ.) |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP, Air Bonding |
|
Interface Type |
CMOS (1 ch, 6-bit) Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

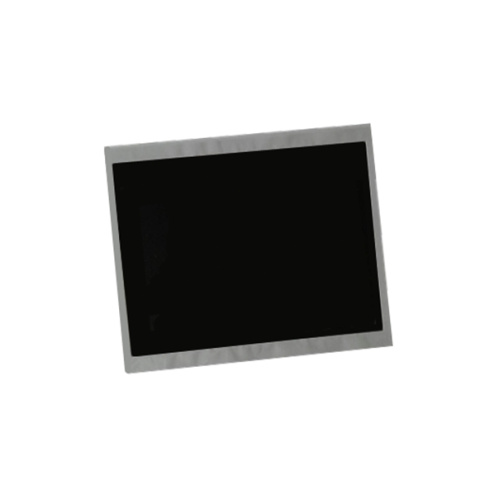

Product Picture:
