AA121TJ01 Mitsubishi 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA121TJ01 is a 12.1 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, With LED Driver, without touch screen. This Mitsubishi TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20180720 which was released out on 4 4 2019, AA121TJ01 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 283(W)×185.1(H)×10.2(D) mm, viewing area size of 263.52(W)×165.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 580g. As a SWV, Normally Black, Transmissive LCM product, AA121TJ01 can provides 1500 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 71% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA121TJ01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA121TJ01 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
12.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1280(RGB)×800, WXGA, 124PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
261.12(W)×163.2(H) mm |
|
Bezel Opening |
263.52(W)×165.6(H) mm |
|
Outline Size |
283(W)×185.1(H) ×10.2(D) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
1500 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
88/88/88/88 (Typ.)(CR≥10) |
|
Display Mode |
SWV, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
12/12 (Typ.)(Tr/Td) |
|
Display Colors |
262K/16.7M 71% NTSC |
|
Lamp Type |
WLED , 100K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
580g |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |

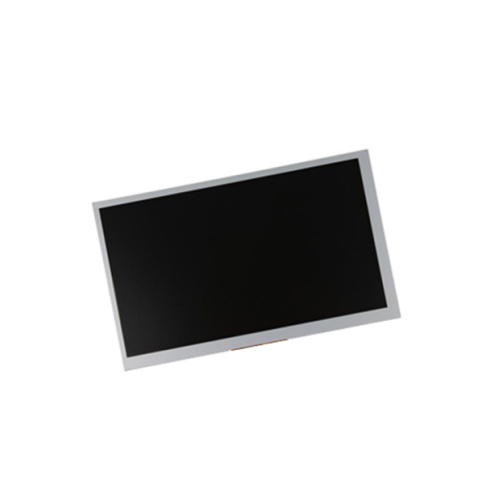

Product Picture:
