AA104SL02-CE2 Mitsubishi 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA104SL02-CE2 is a 10.4 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, With LED Driver, touch screen PCAP, Optical Bonding. This Mitsubishi TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA104SL02-CE2 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 240.6(W)×190.8(H) mm, viewing area size of 212.2(W)×159.4(H) mm, with surface treament of Antireflection, net weight of 820g (Typ.). As a TN, Normally White, Transmissive LCM product, AA104SL02-CE2 can provides 630 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA104SL02-CE2 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA104SL02-CE2 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
10.4" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×600, SVGA, 96PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
211.2(W)×158.4(H) mm |
|
Bezel Opening |
212.2(W)×159.4(H) mm |
|
Outline Size |
240.6(W)×190.8(H) mm |
|
Surface |
Antireflection |
|
Brightness |
630 cd/m² (Typ.) |
|
Contrast Ratio |
700:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
4/12 (Typ.)(Tr/Td) |
|
Display Colors |
262K/16.7M 40% NTSC |
|
Lamp Type |
WLED , 100K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP, Optical Bonding |
|
Panel Weight |
820g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

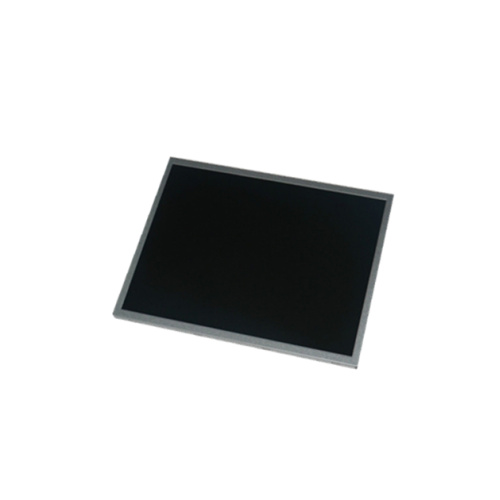

Product Picture:
