AA121XN01-DE2 Mitsubishi 12.1 inch TFT-LCD

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA121XN01-DE2 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touch screen PCAP, Air Bonding. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 80°C.This  Mitsubishi TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AA121XN01-DE2 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 281.8(W)×220.8(H)×16.3(D) mm, viewing area size of 247.6(W)×186.1(H) mm, with surface treament of Clear, Hard coating (5H), net weight of 1.00Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, AA121XN01-DE2 can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA121XN01-DE2 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

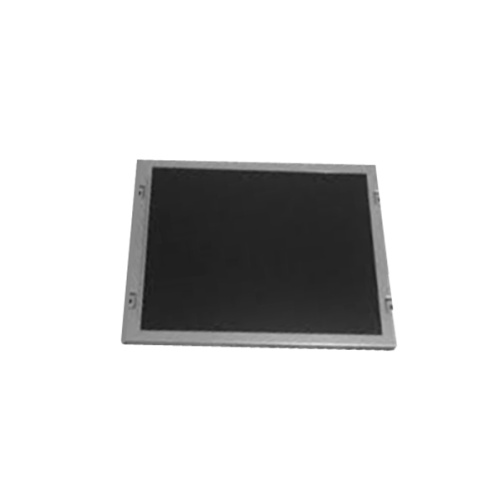

Product Picture:
