AA104SH02--T1 Mitsubishi 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA104SH02--T1 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen 4-wire Resistive Touch. This Mitsubishi TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20090804 which was released out on 8 4 2009, AA104SH02--T1 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 230(W)×180.2(H)×12.6(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 650g. As a TN, Normally White, Transmissive LCM product, AA104SH02--T1 can provides 560 cd/m² display brightness 660:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 60K hours, external backlight driver is additionally needed. AA104SH02--T1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA104SH02--T1 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
10.4 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×600 (SVGA) 96PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
211.2 × 158.4 (H×V) |
|
Outline(mm) |
230 × 180.2 × 12.6 (H×V×D) |
|
Bezel Area(mm) |
215.4 × 161.8 (H×V) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
560 cd/m² (Typ.) |
|
Contrast Ratio |
660 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
|
Response |
4/12 (Typ.)(Tr/Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K/16.7M 40% NTSC |
|
Backlight |
2 strings WLED , 60K hours , No Driver |
|
Mass |
650g |
|
Refresh Rate |
60Hz |
|
Touchscreen |
4-wire Resistive Touch |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , Connector 20 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

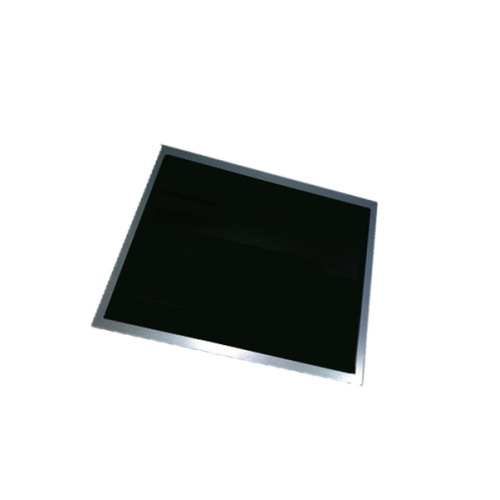

Product Picture:
