AA123AC01 Mitsubishi 12.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA123AC01 is a 12.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 12.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20160420 which was released out on 4 20 2016, AA123AC01 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 292.32(W)×109.62(H) mm, outline size of 310.3(W)×128.1(H)×17.1(D) mm, viewing area size of 296.12(W)×113.42(H) mm, with surface treament of Antiglare, net weight of 465g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA123AC01 can provides 1000 cd/m² display brightness 1100:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, external backlight driver is additionally needed. AA123AC01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA123AC01 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
12.3" |
|
Resolution |
1920(RGB)×720, 166PPI |
|
Display Area |
292.32(W)×109.62(H) mm |
|
Outline Size |
310.3(W)×128.1(H) ×17.1(D) mm |
|
Brightness |
1000 cd/m² (Typ.) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Best View on |
Symmetry |
|
Display Colors |
16.7M 74% NTSC |
|
Frequency |
60Hz |
|
Weight |
465g (Typ.) |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
296.12(W)×113.42(H) mm |
|
Surface |
Antiglare |
|
Contrast Ratio |
1100:1 (Typ.) (TM) |
|
Display Mode |
SWV, Normally Black, Transmissive |
|
Response Time |
30 (Max.)(Tr+Td) |
|
Lamp Type |
WLED , 25K hours , Without Driver |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (2 ch, 8-bit) , 60 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |

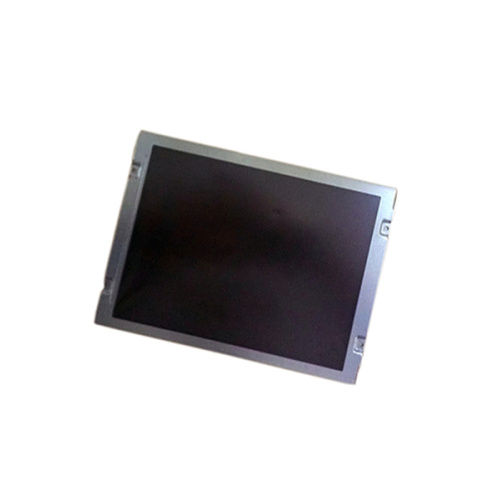

Product Picture:
