AC156GA01 Mitsubishi 15.6 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

AC156GA01 is a 15.6 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, With LED Driver, without touch screen. This Mitsubishi TFT-LCD is a 15.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20141128 which was released out on 11 28 2014, AC156GA01 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 363.8(W)×215.9(H)×11.6(D) mm, viewing area size of 347.53(W)×196.84(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 830g (Typ.). As a TN, Normally White, Transmissive LCM product, AC156GA01 can provides 450 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 3/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AC156GA01 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AC156GA01
Panel Brand	Mitsubishi
Panel Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA, 100PPI
Pixel Format	RGB Vertical Stripe
Display Area	344.232(W)×193.536(H) mm
Bezel Opening	347.53(W)×196.84(H) mm
Outline Size	363.8(W)×215.9(H) ×11.6(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	450 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	80/80/80/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	3/7 (Typ.)(Tr/Td)
Display Colors	16.7M 60% NTSC
Lamp Type	WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	830g (Typ.)
Signal Interface	LVDS (1 ch, 8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C

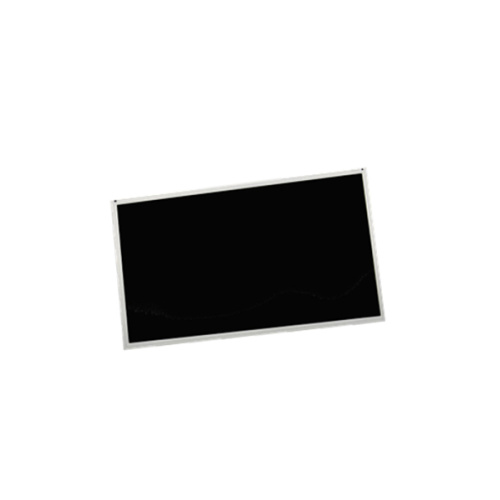

Product Picture:

AC156GA01
