AA084SC03 Mitsubishi 8.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA084SC03 is a 8.4 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, With LED Driver, without touch screen. This Mitsubishi TFT-LCD is a 8.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20120912 which was released out on 9 12 2012, AA084SC03 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 199.5(W)×149(H)×10.2(D) mm, viewing area size of 174.9(W)×132.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 330g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA084SC03 can provides 600 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA084SC03 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA084SC03 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
8.4 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×600 (SVGA) 119PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
170.4 × 127.8 (H×V) |
|
Outline(mm) |
199.5 × 149 × 10.2 (H×V×D) |
|
Bezel Area(mm) |
174.9 × 132.2 (H×V) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
600 cd/m² (Typ.) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Response |
12/12 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
SWV, Normally Black, Transmissive |
|
Color Depth |
262K/16.7M 72% NTSC |
|
Backlight |
WLED , 100K hours , With LED Driver |
|
Mass |
330g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |

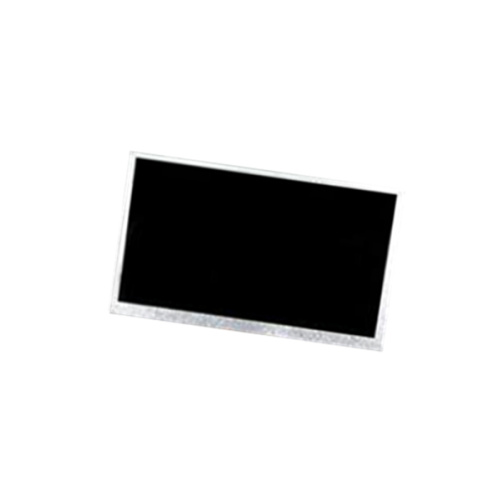

Product Picture:
