AA104SL02--T1 Mitsubishi 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA104SL02--T1 is a 10.4 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, With LED Driver, touch screen 4-wire Resistive Touch. This Mitsubishi TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA104SL02--T1 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 230(W)×180.2(H)×11.6(D) mm, with surface treament of Antiglare, net weight of 590g (Typ.). As a TN, Normally White, Transmissive LCM product, AA104SL02--T1 can provides 560 cd/m² display brightness 670:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA104SL02--T1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA104SL02--T1 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
10.4" |
|
Resolution |
800(RGB)×600, SVGA, 96PPI |
|
Display Area |
211.2(W)×158.4(H) mm |
|
Outline Size |
230(W)×180.2(H) ×11.6(D) mm |
|
Brightness |
560 cd/m² (Typ.) |
|
Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
|
Best View on |
6 o'clock |
|
Display Colors |
262K/16.7M 40% NTSC |
|
Frequency |
60Hz |
|
Weight |
590g (Typ.) |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Surface |
Antiglare |
|
Contrast Ratio |
670:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
4/12 (Typ.)(Tr/Td) |
|
Lamp Type |
WLED , 100K hours , With LED Driver |
|
Touch Screen |
4-wire Resistive Touch |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

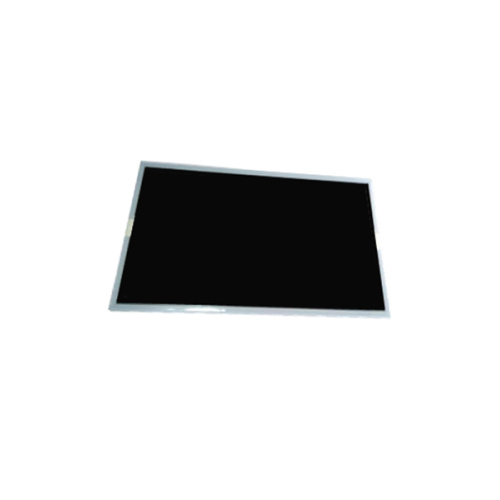

Product Picture:
