AA065VE11ADA11 Mitsubishi 6.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA065VE11ADA11 is a 6.5 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, touch screen PCAP, Air Bonding. This Mitsubishi TFT-LCD is a 6.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20160726 which was released out on 7 26 2016, AA065VE11ADA11 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 132.48(W)×99.36(H) mm, outline size of 170.2(W)×132.6(H)×15.6(D) mm, viewing area size of 133.8(W)×100.7(H) mm, with surface treament of Clear, Hard coating (5H), net weight of 300g (Typ.). As a TN, Normally White, Transmissive LCM product, AA065VE11ADA11 can provides 1000 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/19 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 100K hours, external backlight driver is additionally needed. AA065VE11ADA11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA065VE11ADA11 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
6.5 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
640(RGB)×480 (VGA) 122PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
132.48 × 99.36 (H×V) |
|
Outline(mm) |
170.2 × 132.6 × 15.6 (H×V×D) |
|
Bezel Area(mm) |
133.8 × 100.7 (H×V) |
|
Treatment |
Clear, Hard coating (5H) |
|
Luminance |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
600 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
|
Response |
6/19 (Typ.)(Tr/Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K/16.7M 40% NTSC |
|
Backlight |
2 strings WLED , 100K hours , No Driver |
|
Mass |
300g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
PCAP, Air Bonding |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , Connector 20 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C |

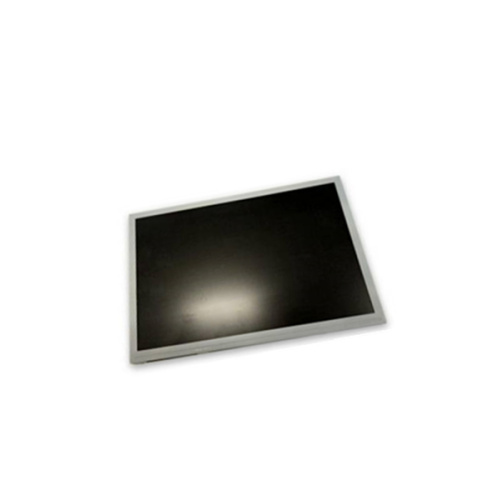

Product Picture:
