G156HCE-E01 15.6 inch Innolux TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
Innolux Corporation (hereafter called Innolux) G156HCE-E01 is a 15.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 15.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G156HCE-E01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 351.84(W)×208.88(H)×6.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 550g (Typ.). As a AAS, Normally Black, Transmissive LCM product, G156HCE-E01 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G156HCE-E01 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
G156HCE-E01 |
|
Brand |
Innolux |
|
Diagonal Size |
15.6" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1920(RGB)×1080, FHD 141PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
344.16(W)×193.59(H) mm |
|
Outline (mm) |
351.84×208.88×6.5 (H×V×D) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
450 cd/m² (Typ.) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Response |
14/11 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
AAS, Normally Black, Transmissive |
|
Color Depth |
16.7M 72% NTSC |
|
Backlight |
WLED , 50K hours , With LED Driver |
|
Mass |
550g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
eDP (2 Lanes) , eDP1.2 , Connector 40 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 60 °C |

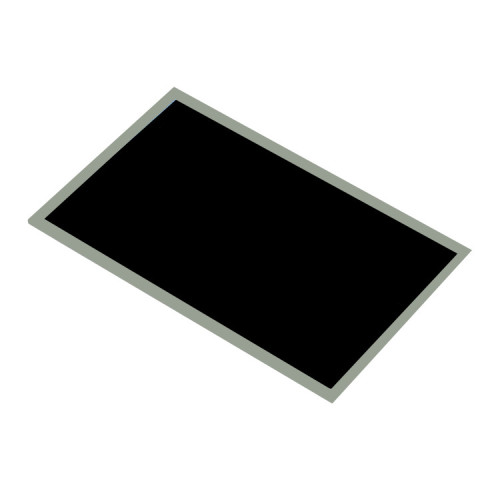

Product Picture:
