N156HCE-EN1 15.6 inch Innolux TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 1000 pcs |
| Payment Type: | Paypal,T/T |
| Incoterm: | EXW |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
This Innolux TFT-LCD is a 15.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. N156HCE-EN1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×216.25(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 293/304g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AAS, Normally Black, Transmissive LCM product, N156HCE-EN1 can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N156HCE-EN1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
N156HCE-EN1 |
|
Brand |
Innolux |
|
Diagonal Size |
15.6" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1920(RGB)×1080, FHD 141PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
344.16(W)×193.59(H) mm |
|
Outline(mm) |
350.66 × 216.25 × 2.6 (H×V×D) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
300 cd/m² (Typ.) |
|
Contrast Ratio |
700 : 1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Response |
14/11 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
AAS, Normally Black, Transmissive |
|
Color Depth |
16.7M 72% NTSC |
|
Backlight |
WLED , 15K hours , With LED Driver |
|
Outline Shape |
Slim (PCBA Flat, T≤3.2mm) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

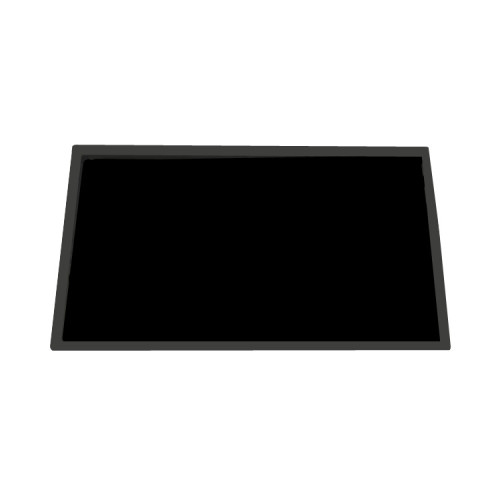

Product Picture:
