G150XJE-E03 15.0 inch Innolux TFT-LCD

G150XJE-E03 is a 15.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G150XJE-E03 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, with surface treament of Antiglare, Hard coating (3H). As a NPVA, Normally Black, Transmissive LCM product, G150XJE-E03 can provides 450 cd/m² display brightness 2500:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G150XJE-E03 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

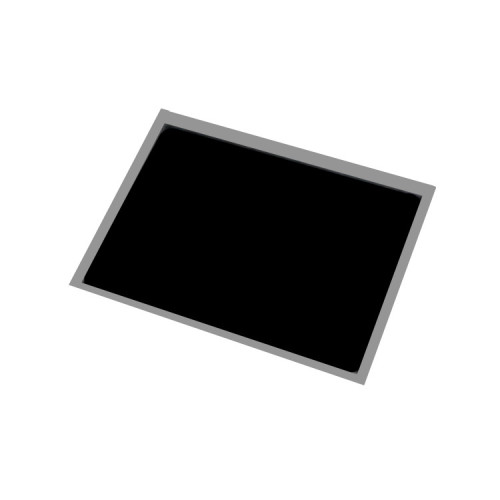

Product Picture:
