G121ICE-L02 12.1 inch Innolux TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express,Others
Port:	HK,Shenzhen

Product Description

This Innolux TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G121ICE-L02 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 278(W)×184(H)×11(D) mm, viewing area size of 264.12(W)×166.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 470/490g (Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, G121ICE-L02 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/8 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G121ICE-L02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Panel Model	G121ICE-L02
Panel Brand	Innolux
Panel Size	12.1"
Resolution	1280(RGB)×800, WXGA, 124PPI
Display Area	261.12(W)×163.2(H) mm
Outline Size	278(W)×184(H) ×11(D) mm
Brightness	400 cd/m² (Typ.)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	262K/16.7M 72% NTSC
Frequency	60Hz
Weight	470/490g (Typ./Max.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	264.12(W)×166.2(H) mm
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	AAS, Normally Black, Transmissive
Response Time	12/8 (Typ.)(Tr/Td)
Lamp Type	WLED , 50K hours , With LED Driver
Touch Screen	Without
Signal Interface	LVDS (1 ch, 6/8-bit) , 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C

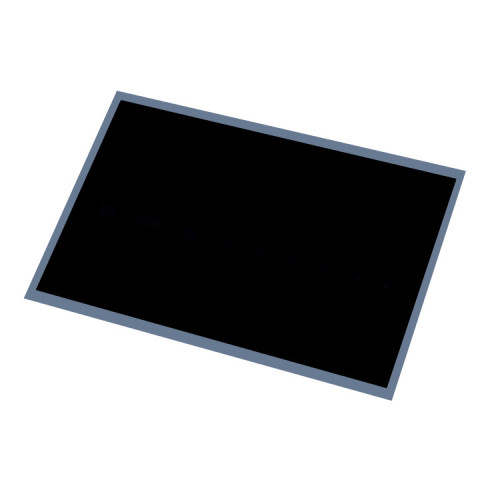

Product Picture:

G121ICE-L02 12.1 inch Innolux TFT-LCD
