G121S1-L02 12.1 inch Innolux TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express,Others
Port:	HK,Shenzhen

Product Description

Innolux Corporation (hereafter called Innolux) G121S1-L02 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G121S1-L02 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 260.5(W)×204(H)×8.9(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare (Haze 22%), Hard coating (3H), net weight of 520/550g (Typ./Max.). As a Super MVA, Normally Black, Transmissive LCM product, G121S1-L02 can provides 600 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G121S1-L02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3/5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Panel Model	G121S1-L02
Panel Brand	Innolux
Panel Size	12.1"
Resolution	800(RGB)×600, SVGA, 82PPI
Display Area	246(W)×184.5(H) mm
Outline Size	260.5(W)×204(H) ×8.9(D) mm
Brightness	600 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	262K/16.2M 50% NTSC
Frequency	60Hz
Weight	520/550g (Typ./Max.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	249.0(W)×187.5(H) mm
Surface	Antiglare (Haze 22%), Hard coating (3H)
Contrast Ratio	1500:1 (Typ.) (TM)
Display Mode	Super MVA, Normally Black, Transmissive
Response Time	13/12 (Typ.)(Tr/Td)
Lamp Type	WLED , 50K hours , With LED Driver
Touch Screen	Without
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage	3.3/5.0V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C

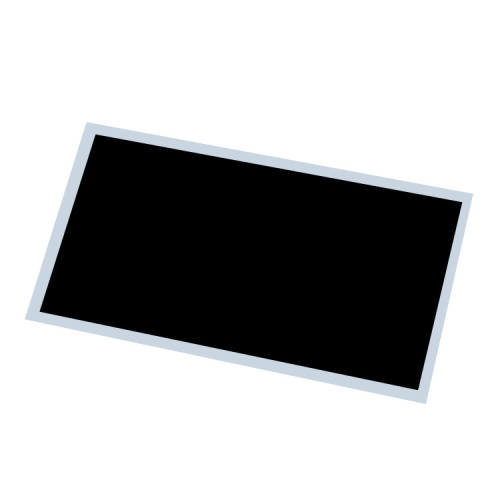

Product Picture:

G121S1-L02 12.1 inch Innolux TFT-LCD
