G080Y1-T01 8.0 inch Innolux TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express,Others
Port:	HK,Shenzhen

Product Description

Chimei Innolux Corporation (hereafter called Chimei Innolux) G080Y1-T01 is a 8.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G080Y1-T01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 173.4(W)×104.04(H) mm, outline size of 190(W)×120(H) mm, viewing area size of 175.2(W)×105.84(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 172g (Typ.). As a TN, Normally White, Transmissive LCM product, G080Y1-T01 can provides 600 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 72% (NTSC). This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. G080Y1-T01 utilizes TTL (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Panel Model	G080Y1-T01
Panel Brand	Chimei Innolux
Panel Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA, 117PPI
Pixel Format	RGB Vertical Stripe
Display Area	173.4(W)×104.04(H) mm
Bezel Opening	175.2(W)×105.84(H) mm
Outline Size	190(W)×120(H) mm
Surface	Antiglare, Hard coating (3H)
Brightness	600 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	70/70/60/60 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	5/11 (Typ.)(Tr/Td)
Display Colors	262K/16.2M 72% NTSC
Lamp Type	9S3P WLED , 30K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	172g (Typ.)
Signal Interface	TTL (1 ch, 6/8-bit) , 60 pins FPC
Input Voltage	3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²)

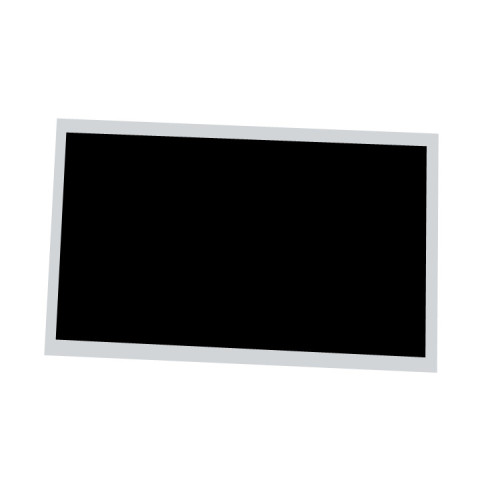

Product Picture:

G080Y1-T01 8.0 inch Innolux TFT-LCD
