G070Y3-T01 7.0 inch Innolux TFT-LCD
-
$20.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | HK,Shenzhen |
Chimei Innolux Corporation (hereafter called Chimei Innolux) G070Y3-T01 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G070Y3-T01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 156(W)×82.8(H) mm, outline size of 168(W)×94(H)×6.65(D) mm, viewing area size of 159.3(W)×86.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 180g (Typ.). As a TN, Normally White, Transmissive LCM product, G070Y3-T01 can provides 600 cd/m² display brightness 650:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. G070Y3-T01 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10.5/18/-7V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
| Model Name | G070Y3-T01 |
| Manufacturer | Chimei Innolux |
| Screen Size | 7.0 inch |
| Pixel Number | 800(RGB)×480 (WVGA) 134PPI |
| Active Area(mm) | 156 × 82.8 (H×V) |
| Bezel Area(mm) | 159.3 × 86.0 (H×V) |
| Luminance | 600 (Typ.)(cd/m²) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 60% NTSC |
| Mass | 180g (Typ.) |
| Refresh Rate | 60Hz |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 168 × 94 × 6.65 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 650 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 5/11 (Typ.)(Tr/Td) ms |
| Backlight | 9S3P WLED , 30K hours , No Driver |
| Touchscreen | Without |
| Signal Type | TTL (1 ch, 6-bit) , 50 pins FPC |
| Voltage Supply | 3.3/10.5/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |

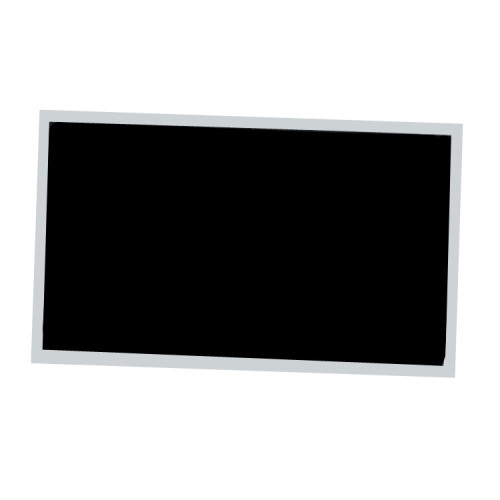

Product Picture:
