G057VCE-TH1 5.7 inch Innolux TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express,Others
Port:	HK,Shenzhen

Product Description

Innolux Corporation (hereafter called Innolux) G057VCE-TH1 is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.G057VCE-TH1 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of TBD. As a VA, Normally Black, Transmissive LCM product, G057VCE-TH1 can provides 360 cd/m² display brightness 600:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G057VCE-TH1 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Panel Model	G057VCE-TH1
Panel Brand	Innolux
Panel Size	5.7"
Resolution	640(RGB)×480, VGA, 141PPI
Display Area	115.2(W)×86.4(H) mm
Outline Size	144(W)×104.6(H) ×12.8(D) mm
Brightness	360 cd/m² (Typ.)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	262K 72% NTSC
Frequency	60Hz
Weight	TBD
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	118.2(W)×89.4(H) mm
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	600:1 (Typ.) (TM)
Display Mode	VA, Normally Black, Transmissive
Response Time	13/12 (Typ.)(Tr/Td)
Lamp Type	WLED , 50K hours , With LED Driver
Touch Screen	Without
Signal Interface	Parallel RGB (1 ch, 6-bit) , 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C

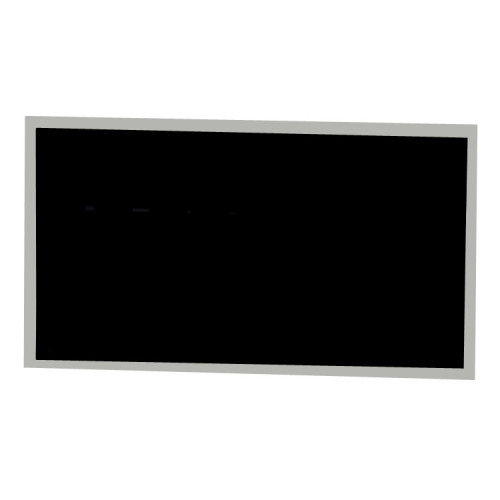

Product Picture:

G057VCE-TH1 5.7 inch Innolux TFT-LCD
