G057VGE-T01 5.7 inch Innolux TFT-LCD
-
$20.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | HK,Shenzhen |
G057VGE-T01 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 155/170g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, G057VGE-T01 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/35 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 54% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G057VGE-T01 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
| Model | G057VGE-T01 |
| Brand | Innolux |
| Diagonal Size | 5.7 inch |
| Pixel Format | 640(RGB)×480 [VGA] 141PPI |
| Active Area | 115.2(H)×86.4(V) mm |
| Bezel Area | 118.2(H)×89.4(V) mm |
| Luminance | 450 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Support Color | 262K 54% NTSC |
| Weight | 155/170g (Typ./Max.) |
| Frame Rate | 60Hz |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 144(H)×104.6(V) ×12.8(D) mm |
| Treatment | Antiglare (Haze 25%) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 15/35 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED , 50K hours , With LED Driver |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6-bit) 33 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |

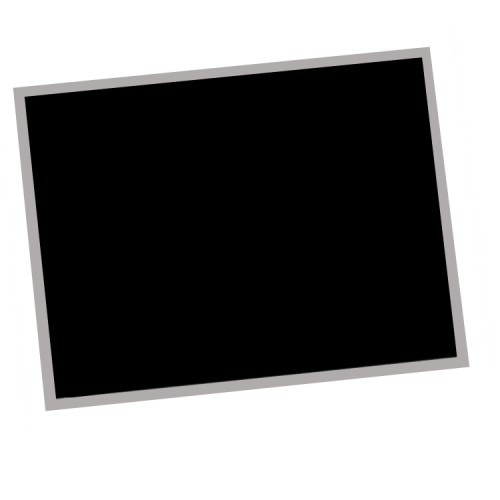

Product Picture:
