M230HGE-L30 Innolux 23.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) M230HGE-L30 is a 23.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 23.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Rev.B4_Ver1.0 which was released out on 12 1 2015, M230HGE-L30 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 509.184(W)×286.416(H) mm, outline size of 533.2(W)×312(H)×11.37(D) mm, viewing area size of 513.8(W)×291.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.09±0.11Kgs. As a TN, Normally White, Transmissive LCM product, M230HGE-L30 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 14S4P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. M230HGE-L30 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
M230HGE-L30
Manufacturer
Innolux
Screen Size
23.0 inch
Screen Type
LCM , a-Si TFT-LCD
Pixel Number
1920(RGB)×1080 (FHD)
Arrangement
RGB Vertical Stripe
Active Area(mm)
509.184 × 286.416 (H×V)
Outline(mm)
533.2 × 312 × 11.37 (H×V×D)
Bezel Area(mm)
513.8 × 291.0 (H×V)
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
250 cd/m² (Typ.)
Contrast Ratio
1000 : 1 (Typ.) (TM)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Response
1.5/3.5 (Typ.)(Tr/Td) ms
Good View at
6 o'clock
Work Mode
TN, Normally White, Transmissive
Color Depth
16.7M 72% NTSC
Backlight
14S4P WLED , 30K hours , No Driver
Mass
2.09±0.11Kgs
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply
5.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

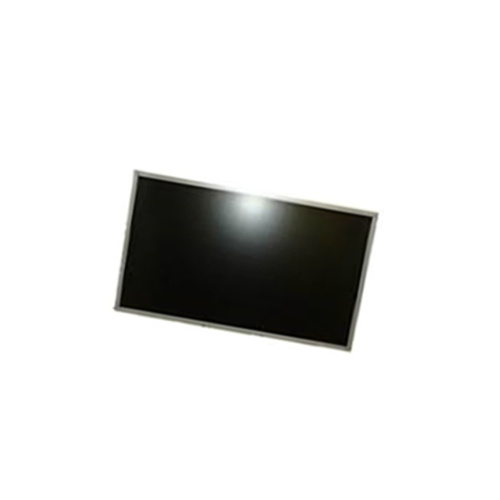

Product Picture:
