M230HCJ-L3N Rev.A1 Innolux 23.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
M230HCJ-L3N Rev.A1 is a 23.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 23.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver0.1 which was released out on 12 7 2015, M230HCJ-L3N Rev.A1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 509.184(W)×286.416(H) mm, outline size of 522.38(W)×305.62(H) mm, viewing area size of 512.38(W)×289.62(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.22±0.10Kgs. As a AAS, Normally Black, Transmissive LCM product, M230HCJ-L3N Rev.A1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side), external backlight driver is additionally needed. M230HCJ-L3N Rev.A1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
M230HCJ-L3N Rev.A1
Panel Brand
Innolux
Panel Size
23.0"
Resolution
1920(RGB)×1080 , FHD
Display Area
509.184(W)×286.416(H) mm
Outline Size
522.38(W)×305.62(H) mm
Brightness
250 cd/m² (Typ.)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Best View on
Symmetry
Display Colors
16.7M 72% NTSC
Frequency
60Hz
Weight
2.22±0.10Kgs
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
512.38(W)×289.62(H) mm
Surface
Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio
1000:1 (Typ.) (TM)
Display Mode
AAS, Normally Black, Transmissive
Response Time
8/7 (Typ.)(Tr/Td)
Lamp Type
4 strings WLED , Without Driver
Touch Screen
Without
Signal Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

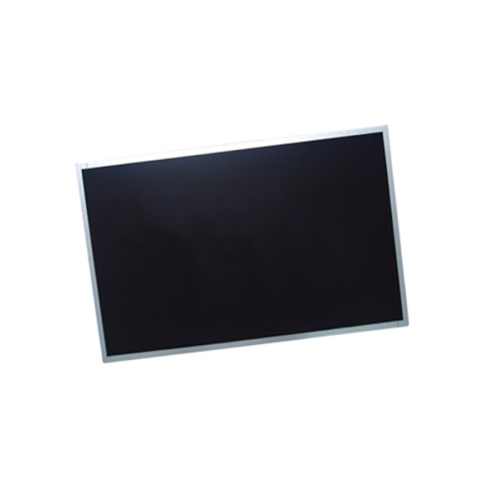

Product Picture:
