G215HCJ-L02 Innolux 21.5 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Innolux Corporation (hereafter called Innolux) G215HCJ-L02 is a 21.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 21.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G215HCJ-L02 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.064(W)×267.786(H) mm, outline size of 497.6(W)×287(H)×14(D) mm, viewing area size of 479.3(W)×270.9(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H). As a AAS, Normally Black, Transmissive LCM product, G215HCJ-L02 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G215HCJ-L02 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Model	G215HCJ-L02
Brand	Innolux
Diagonal Size	21.5 inch
Pixel Format	1920(RGB)×1080 [FHD]
Active Area	476.064(H)×267.786(V) mm
Bezel Area	479.3(H)×270.9(V) mm
Luminance	350 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Support Color	16.7M 72% NTSC
Frame Rate	60Hz
Type	a-Si TFT-LCD , LCM
Configuration	RGB Vertical Stripe
Outline Dim.	497.6(H)×287(V) ×14(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	8/7 (Typ.)(Tr/Td)
Operating Mode	AAS, Normally Black, Transmissive
Light Source	WLED , 50K hours , With LED Driver
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit) 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C

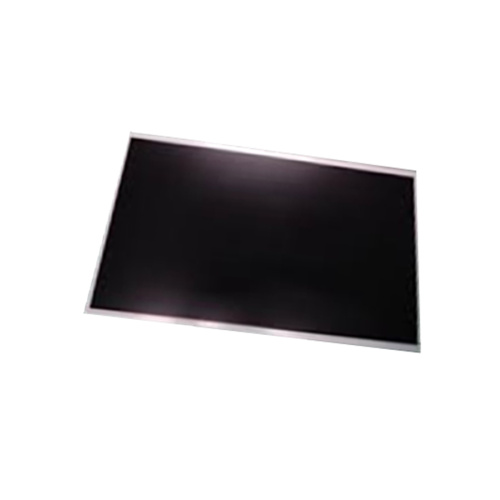

Product Picture:

G215HCJ-L02
