M215HGE-L21 Chimei Innolux 21.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Chimei Innolux Corporation (hereafter called Chimei Innolux) M215HGE-L21 is a 21.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 21.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver3.3 which was released out on 8 25 2011, M215HGE-L21 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×268.11(H) mm, outline size of 495.6(W)×292.2(H)×11.5(D) mm, viewing area size of 479.8(W)×271.3(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.91/2.10Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, M215HGE-L21 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 11S4P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 40K hours, external backlight driver is additionally needed. M215HGE-L21 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
M215HGE-L21 1 Compatible
Brand
Chimei Innolux
Diagonal Size
21.5 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1920(RGB)×1080 [FHD]
Configuration
RGB Vertical Stripe
Active Area
476.64(H)×268.11(V) mm
Outline Dim.
495.6(H)×292.2(V) ×11.5(D) mm
Bezel Area
479.8(H)×271.3(V) mm
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
250 cd/m² (Min.)
Contrast Ratio
1000:1 (Typ.) (TM)
View Direction
6 o'clock
Response Time
1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
16.7M 72% NTSC
Light Source
WLED [11S4P] , 40K hours , W/O Driver
Weight
1.91/2.10Kgs (Typ./Max.)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply
5.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

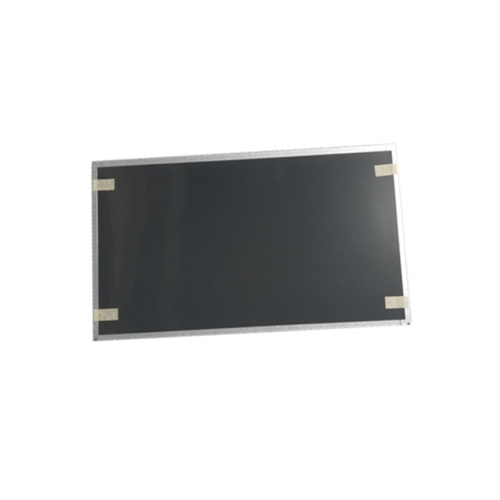

Product Picture:
