M195FGE-L23 Innolux 19.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
M195FGE-L23 is a 19.5 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 19.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver2.1 which was released out on 6 24 2013, M195FGE-L23 supports display 1600(RGB)×900 (HD+) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 432(W)×239.76(H) mm, outline size of 452(W)×263(H)×11(D) mm, viewing area size of 435.3(W)×243.06(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.40/1.45Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, M195FGE-L23 can provides 200 cd/m² display brightness 600:1 transimissive contrast ratio, 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 40K hours, external backlight driver is additionally needed. M195FGE-L23 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
M195FGE-L23
Panel Brand
Innolux
Panel Size
19.5"
Resolution
1600(RGB)×900 , HD+
Display Area
432(W)×239.76(H) mm
Outline Size
452(W)×263(H) ×11(D) mm
Brightness
200 cd/m² (Typ.)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Best View on
6 o'clock
Display Colors
16.7M 72% NTSC
Frequency
60Hz
Weight
1.40/1.45Kgs (Typ./Max.)
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
435.3(W)×243.06(H) mm
Surface
Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio
600:1 (Typ.) (TM)
Display Mode
TN, Normally White, Transmissive
Response Time
1.5/3.5 (Typ.)(Tr/Td)
Lamp Type
10S4P WLED , 40K hours , Without Driver
Touch Screen
Without
Signal Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

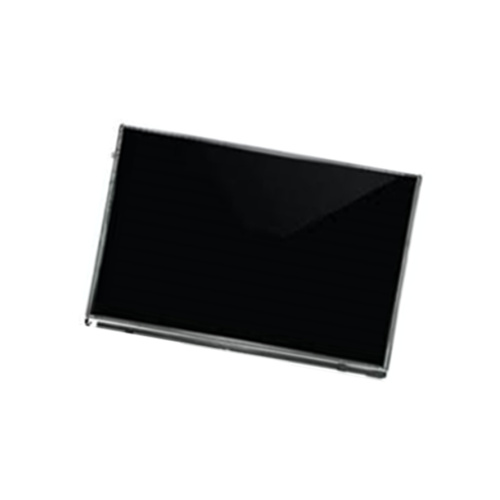

Product Picture:
