M170EGE-L20 Chimei Innolux 17.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
M170EGE-L20 is a 17.0 inch diagonal a-Si TFT-LCD display screen product from Chimei Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 17.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Rev.C1_Ver1.5 which was released out on 5 2 2012, M170EGE-L20 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 337.92(W)×270.336(H) mm, outline size of 358.5(W)×296.5(H)×11(D) mm, viewing area size of 341.9(W)×274.4(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.40/1.50Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, M170EGE-L20 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 1/4 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, external backlight driver is additionally needed. M170EGE-L20 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
M170EGE-L20
Manufacturer
Chimei Innolux
Screen Size
17.0 inch
Screen Type
LCM , a-Si TFT-LCD
Pixel Number
1280(RGB)×1024 (SXGA)
Arrangement
RGB Vertical Stripe
Active Area(mm)
337.92 × 270.336 (H×V)
Outline(mm)
358.5 × 296.5 × 11 (H×V×D)
Bezel Area(mm)
341.9 × 274.4 (H×V)
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
250 cd/m² (Typ.)
Contrast Ratio
1000 : 1 (Typ.) (TM)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Response
1/4 (Typ.)(Tr/Td) ms
Good View at
6 o'clock
Work Mode
TN, Normally White, Transmissive
Color Depth
16.7M 72% NTSC
Backlight
12S4P WLED , 50K hours , No Driver
Mass
1.40/1.50Kgs (Typ./Max.)
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply
5.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

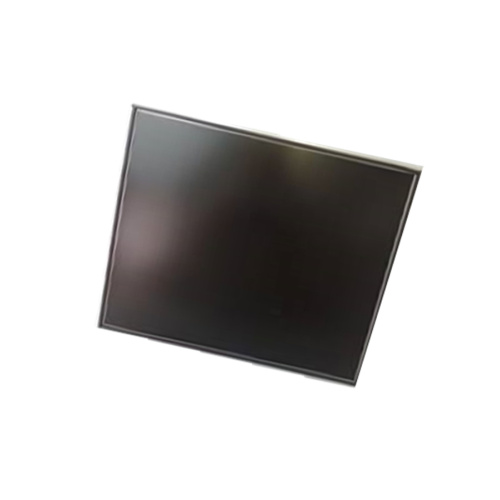

Product Picture:
