G150XJE-E02 Innolux 15.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) G150XJE-E02 is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G150XJE-E02 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, with surface treament of Antiglare, Hard coating (3H). As a NPVA, Normally Black, Transmissive LCM product, G150XJE-E02 can provides 400 cd/m² display brightness 2500:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. G150XJE-E02 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
G150XJE-E02
Brand
Innolux
Diagonal Size
15.0 inch
Pixel Format
1024(RGB)×768 [XGA]
Active Area
304.128(H)×228.096(V) mm
Luminance
400 cd/m² (Typ.)
View Direction
Symmetry
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Support Color
262K/16.7M 72% NTSC
Frame Rate
60Hz
Type
a-Si TFT-LCD , LCM
Configuration
RGB Vertical Stripe
Treatment
Antiglare, Hard coating (3H)
Contrast Ratio
2500:1 (Typ.) (TM)
Response Time
16/7 (Typ.)(Tr/Td)
Operating Mode
NPVA, Normally Black, Transmissive
Light Source
WLED , 70K hours , With LED Driver
Touch Panel
Without
Interface Type
eDP (1 Lane) 30 pins Connector
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: 0 ~ 60 °C -

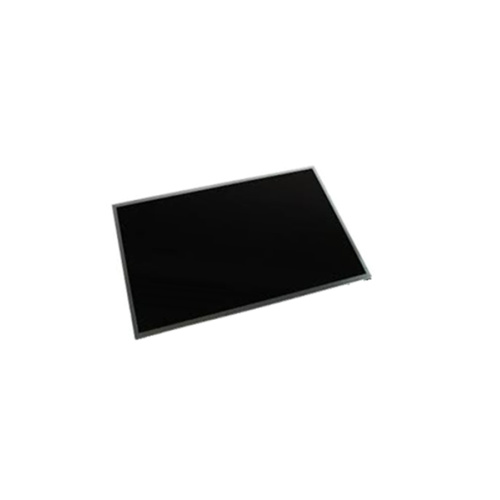

Product Picture:
