N140BGA-EB4 Innolux 14.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) N140BGA-EB4 (Product Code: CMN14E3) is a 14.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . This Innolux TFT-LCD is a 14.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. N140BGA-EB4 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.399(W)×173.952(H) mm, outline size of 315.9(W)×197.53(H)×3(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 265/280g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, N140BGA-EB4 can provides 220 cd/m² display brightness 600:1 transimissive contrast ratio, 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 3/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N140BGA-EB4 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
N140BGA-EB4 (CMN14E3)
Panel Brand
Innolux
Panel Size
14.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1366(RGB)×768 , WXGA
Pixel Format
RGB Vertical Stripe
Display Area
309.399(W)×173.952(H) mm
Outline Size
315.9(W)×197.53(H) ×3(D) mm
Surface
Glare (Haze 0%), Hard coating (3H)
Brightness
220 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (TM)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response Time
3/7 (Typ.)(Tr/Td)
Display Colors
262K 45% NTSC
Lamp Type
WLED , 15K hours , With LED Driver
Frequency
60Hz
Touch Screen
Without
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Signal Interface
eDP (1 Lane) , 30 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

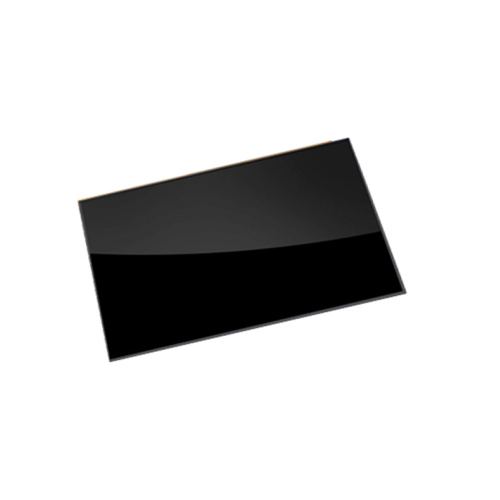

Product Picture:
