DK123IA-01A Innolux 12.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) DK123IA-01A is a 12.3 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C .This Innolux TFT-LCD is a 12.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. DK123IA-01A supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 292.608(W)×109.728(H) mm, outline size of 310.03(W)×128.03(H) mm, with surface treament of Antiglare, net weight of 815g (Typ.). As a IPS, Normally Black, Transmissive LCM product, DK123IA-01A can provides 1000 cd/m² display brightness 800:1 transimissive contrast ratio, 60/60/60/60 (Typ.)(CR≥100) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 80% (NTSC). This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. DK123IA-01A utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3/6.0/6.0/20/-11V (Typ.)(VCC/VDDP/VDDN/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
DK123IA-01A
Panel Brand
Innolux
Panel Size
12.3"
Resolution
1920(RGB)×720
Display Area
292.608(W)×109.728(H) mm
Outline Size
310.03(W)×128.03(H) mm
Brightness
1000 cd/m² (Typ.)
Viewing Angle
60/60/60/60 (Typ.)(CR≥100)
Best View on
Symmetry
Display Colors
16.7M 80% NTSC
Frequency
60Hz
Weight
815g (Typ.)
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Surface
Antiglare
Contrast Ratio
800:1 (Typ.) (TM)
Display Mode
IPS, Normally Black, Transmissive
Response Time
20 (Typ.)(G to G)
Lamp Type
12S4P WLED , 15K hours , Without Driver
Touch Screen
Without
Signal Interface
LVDS (2 ch, 8-bit) , 60 pins Connector
Input Voltage
3.3/6.0/6.0/20/-11V (Typ.)(VCC/VDDP/VDDN/VGH/VGL)
Environment
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C

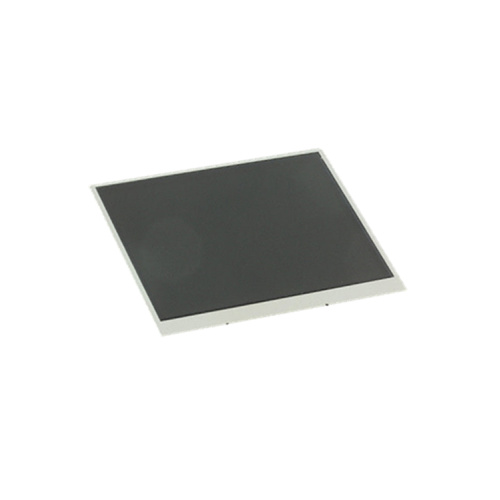

Product Picture:
