G121XCE-L02 Innolux 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) G121XCE-L02 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -40 ~ 80°C ,This Innolux TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G121XCE-L02 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 260.5(W)×204(H)×8.9(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 490/510g (Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, G121XCE-L02 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. G121XCE-L02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
G121XCE-L02
Brand
Innolux
Diagonal Size
12.1 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1024(RGB)×768 [XGA]
Configuration
RGB Vertical Stripe
Active Area
245.76(H)×184.32(V) mm
Outline Dim.
260.5(H)×204(V) ×8.9(D) mm
Bezel Area
249.0(H)×187.5(V) mm
Treatment
Antiglare, Hard coating (3H)
Luminance
500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
13/12 (Typ.)(Tr/Td)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AAS, Normally Black, Transmissive
Support Color
262K/16.2M 72% NTSC
Light Source
WLED , 30K hours , With LED Driver
Weight
490/510g (Typ./Max.)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C

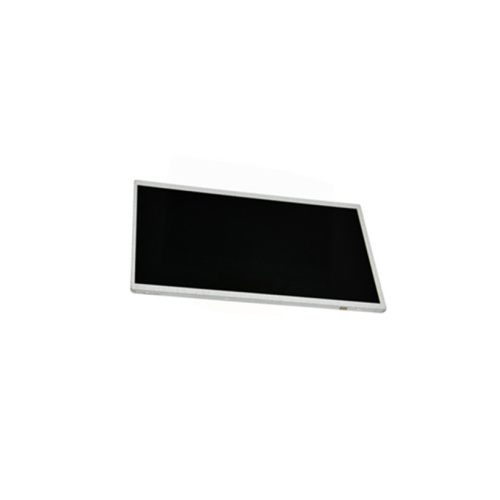

Product Picture:
