G121I1-L01 Innolux 12.1 inch TFT-LCD

Innolux Corporation (hereafter called Innolux) G121I1-L01 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -20 ~ 80°C. This Innolux TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G121I1-L01 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 278(W)×184(H)×10.5(D) mm, viewing area size of 265.10(W)×167.20(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 455g (Typ.). As a MVA, Normally Black, Transmissive LCM product, G121I1-L01 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G121I1-L01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

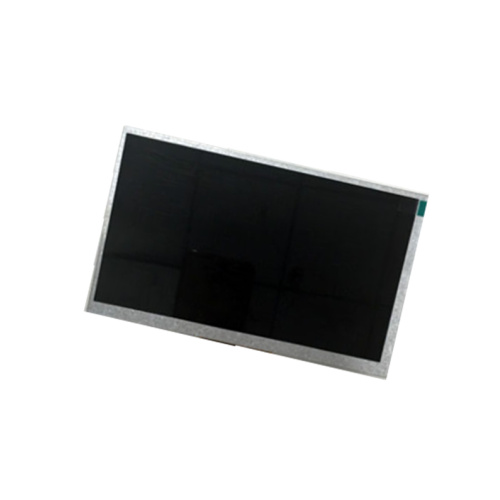

Product Picture:
