N116BCN-EA1 Innolux 11.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) N116BCN-EA1 (Product Code: CMN1149) is a 11.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen On-Cell Touch. This Innolux TFT-LCD is a 11.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Rev.C1_Ver3.0 which was released out on 12 5 2019, N116BCN-EA1 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.125(W)×144(H) mm, outline size of 278(W)×168(H)×3.2(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 175/185g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AAS, Normally Black, Transmissive LCM product, N116BCN-EA1 can provides 235 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 11/14 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N116BCN-EA1 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
N116BCN-EA1 (CMN1149) |
|
Panel Brand |
Innolux |
|
Panel Size |
11.6" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1366(RGB)×768 , WXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
256.125(W)×144(H) mm |
|
Outline Size |
278(W)×168(H) ×3.2(D) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
235 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Display Mode |
AAS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
11/14 (Typ.)(Tr/Td) |
|
Display Colors |
262K 50% NTSC |
|
Lamp Type |
WLED , 15K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
On-Cell Touch |
|
Shape Style |
Slim (PCBA Flat, T≤3.2mm) |
|
Signal Interface |
eDP (1 Lane) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

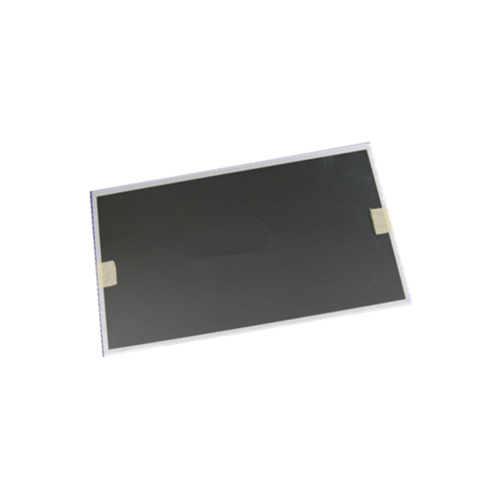

Product Picture:
