N116BCA-EA1 Innolux 11.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
N116BCA-EA1 (Product Code: CMN1138) is a 11.6" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . This Innolux TFT-LCD is a 11.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. N116BCA-EA1 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.125(W)×144(H) mm, outline size of 278(W)×168(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 200g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AAS, Normally Black, Transmissive LCM product, N116BCA-EA1 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 11/14 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N116BCA-EA1 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
N116BCA-EA1 (CMN1138) |
|
Manufacturer |
Innolux |
|
Screen Size |
11.6 inch |
|
Pixel Number |
1366(RGB)×768 (WXGA) |
|
Active Area(mm) |
256.125 × 144 (H×V) |
|
Luminance |
250 (Typ.)(cd/m²) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Good View at |
Symmetry |
|
Color Depth |
262K 45% NTSC |
|
Outline Shape |
Slim (PCBA Flat, T≤3.2mm) |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
278 × 168 × 3 (H×V×D) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Work Mode |
AAS, Normally Black, Transmissive |
|
Response |
11/14 (Typ.)(Tr/Td) ms |
|
Backlight |
WLED , 15K hours , With LED Driver |
|
Touchscreen |
Without |
|
Signal Type |
eDP (1 Lane) , 30 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

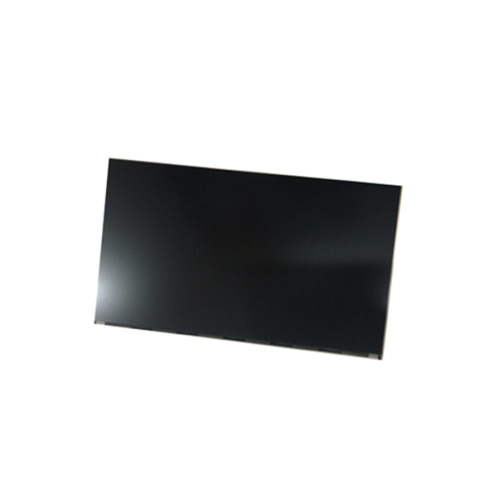

Product Picture:
