G104ACJ-L01 Innolux 10.4 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

G104ACJ-L01 is a 10.4 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver0.0 which was released out on 9 19 2018, G104ACJ-L01 supports display 960(RGB)×1280 (Quad-VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 158.4(W)×211.2(H) mm, outline size of 173.4(W)×228.7(H)×14.27(D) mm, viewing area size of 160.6(W)×213.9(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 450/470g (Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, G104ACJ-L01 can provides 900 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. G104ACJ-L01 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Panel Model	G104ACJ-L01
Panel Brand	Innolux
Panel Size	10.4"
Resolution	960(RGB)×1280 , Quad-VGA
Display Area	158.4(W)×211.2(H) mm
Outline Size	173.4(W)×228.7(H) ×14.27(D) mm
Brightness	900 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 73% NTSC
Frequency	60Hz
Weight	450/470g (Typ./Max.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	160.6(W)×213.9(H) mm
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	AAS, Normally Black, Transmissive
Response Time	13/12 (Typ.)(Tr/Td)
Lamp Type	WLED , 50K hours , Without Driver
Touch Screen	Without
Signal Interface	LVDS (1 ch, 8-bit) , 50 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C

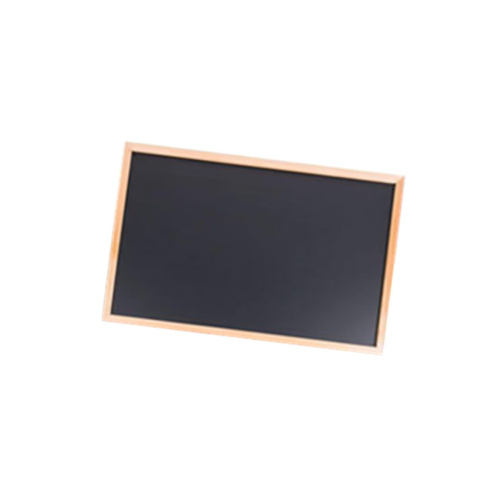

Product Picture:

G104ACJ-L01
