G104AGE-L02 Innolux 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) G104AGE-L02 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.0 which was released out on 7 3 2013, G104AGE-L02 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×184(H) mm, viewing area size of 214.8(W)×162.7(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 505/540g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, G104AGE-L02 can provides 400 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 53% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G104AGE-L02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
G104AGE-L02 |
|
Manufacturer |
Innolux |
|
Screen Size |
10.4 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×600 (SVGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
211.2 × 158.4 (H×V) |
|
Outline(mm) |
243 × 184 (H×V×D) |
|
Bezel Area(mm) |
214.8 × 162.7 (H×V) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
700 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/70/70 (Typ.)(CR≥10) |
|
Response |
5/11 (Typ.)(Tr/Td) ms |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K/16.2M 53% NTSC |
|
Backlight |
WLED , 50K hours , With LED Driver |
|
Mass |
505/540g (Typ./Max.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , Connector 20 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |

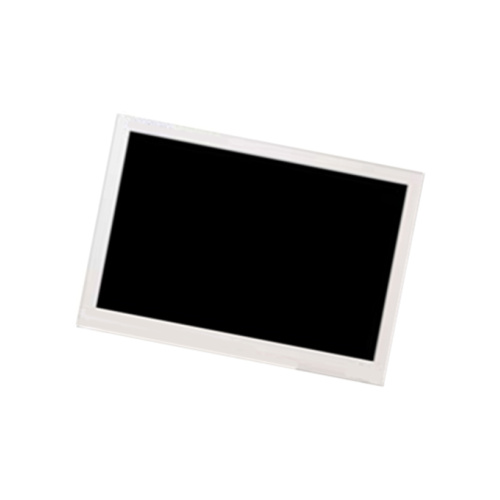

Product Picture:
