G104X1-L03 Innolux 10.4 inch TFT-LCD

G104X1-L03 is a 10.4" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , This Innolux TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G104X1-L03 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 238.6(W)×175.8(H)×7.97(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, net weight of 280g (Typ.). As a Super MVA, Normally Black, Transmissive LCM product, G104X1-L03 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 53% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. G104X1-L03 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

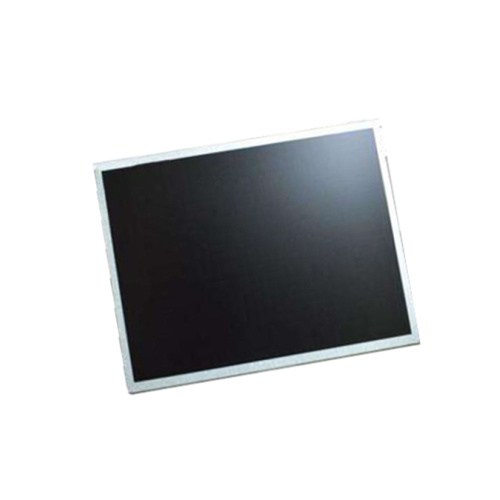

Product Picture:
