G104V1-T03 Innolux 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) G104V1-T03 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.3 which was released out on 4 10 2013, G104V1-T03 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 225.5(W)×176.3(H)×9.34(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 395±50g. As a Super MVA, Normally Black, Transmissive LCM product, G104V1-T03 can provides 500 cd/m² display brightness 1500:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, With LED Driver. G104V1-T03 utilizes CMOS/TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 3.3/5.0V (Typ.)(VCC). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
G104V1-T03 |
|
Manufacturer |
Innolux |
|
Screen Size |
10.4 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
640(RGB)×480 (VGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
211.2 × 158.4 (H×V) |
|
Outline(mm) |
225.5 × 176.3 × 9.34 (H×V×D) |
|
Bezel Area(mm) |
215.4 × 161.8 (H×V) |
|
Treatment |
Antiglare (Haze 25%), Hard coating (3H) |
|
Luminance |
500 cd/m² (Typ.) |
|
Contrast Ratio |
1500 : 1 (Typ.) (TM) |
|
Viewing Angle |
88/88/88/88 (Typ.)(CR≥10) |
|
Response |
14/9 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
Super MVA, Normally Black, Transmissive |
|
Color Depth |
262K 55% NTSC |
|
Backlight |
WLED , 50K hours , With LED Driver |
|
Mass |
395±50g |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
CMOS/TTL (1 ch, 6-bit) , 31 pins Connector |
|
Voltage Supply |
3.3/5.0V (Typ.)(VCC) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |

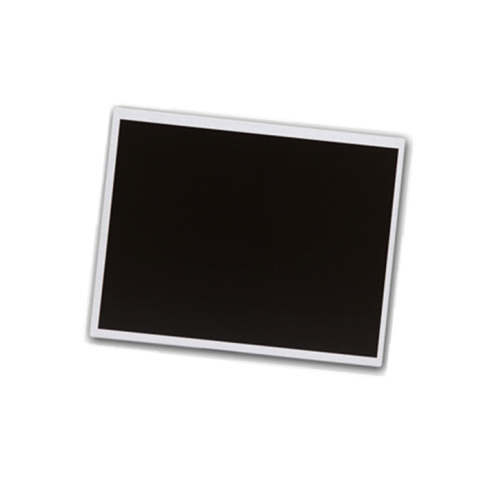

Product Picture:
