JD103IA-03F Innolux 10.3 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Innolux Corporation (hereafter called Innolux) JD103IA-03F is a 10.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen PCAP, Optical Bonding. This Innolux TFT-LCD is a 10.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver.V11 which was released out on 6 25 2018, JD103IA-03F supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 243.648(W)×91.4(H) mm, outline size of 322.28(W)×164.46(H)×18.8(D) mm, with surface treament of Hard coating (7H), net weight of 600g (tYP.). As a AAS, Normally Black, Transmissive LCM product, JD103IA-03F can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 85% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. JD103IA-03F utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Panel Model	JD103IA-03F
Panel Brand	Innolux
Panel Size	10.3"
Resolution	1920(RGB)×720
Display Area	243.648(W)×91.4(H) mm
Outline Size	322.28(W)×164.46(H) ×18.8(D) mm
Brightness	750 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 85% NTSC
Frequency	60Hz
Weight	600g (tYP.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Surface	Hard coating (7H)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	AAS, Normally Black, Transmissive
Response Time	15/10 (Typ.)(Tr/Td)
Lamp Type	9S4P WLED , 20K hours , Without Driver
Touch Screen	PCAP, Optical Bonding
Signal Interface	LVDS (2 ch, 8-bit) , 50 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C

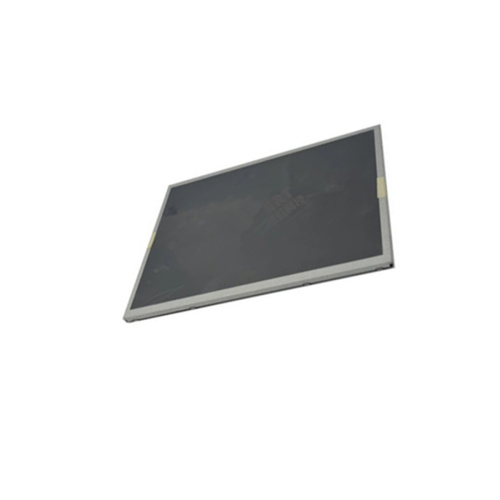

Product Picture:

JD103IA-03F
