AT102TN03 V.8 Innolux 10.2 inch TFT-LCD

AT102TN03 V.8 is a 10.2" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C . This Innolux TFT-LCD is a 10.2 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. AT102TN03 V.8 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222(W)×132.48(H) mm, outline size of 235(W)×145.8(H)×6.4(D) mm, viewing area size of 225.3(W)×135.7(H) mm, with surface treament of Antiglare, net weight of 332g (Typ.). As a TN, Normally White, Transmissive LCM product, AT102TN03 V.8 can provides 350 cd/m² display brightness 300:1 transimissive contrast ratio, 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 20K hours, external backlight driver is additionally needed. AT102TN03 V.8 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

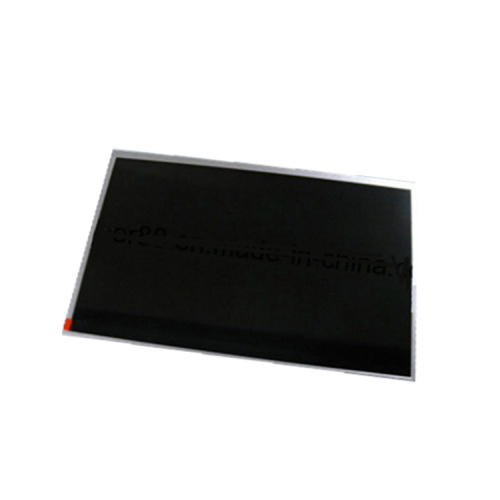

Product Picture:
