P101DCA-AZ0 Innolux 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
P101DCA-AZ0 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.1 which was released out on 9 1 2015, P101DCA-AZ0 supports display 800(RGB)×1280 (WXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 135.36(W)×216.576(H) mm, outline size of 143.24(W)×228.6(H)×3.8(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 130g (Max.). As a AAS, Normally Black, Transmissive LCM product, P101DCA-AZ0 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, external backlight driver is additionally needed. P101DCA-AZ0 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 1.8/5.2/-5.2V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
P101DCA-AZ0 |
|
Panel Brand |
Innolux |
|
Panel Size |
10.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×1280 , WXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
135.36(W)×216.576(H) mm |
|
Outline Size |
143.24(W)×228.6(H) ×3.8(D) mm |
|
Surface |
Glare (Haze 0%), Hard coating (3H) |
|
Brightness |
500 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
AAS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 60% NTSC |
|
Lamp Type |
WLED , 12K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
130g (Max.) |
|
Signal Interface |
MIPI (4 data lanes) , 51 pins Connector |
|
Input Voltage |
1.8/5.2/-5.2V (Typ.)(VDDI/AVDD/AVEE) |
|
Environment |
Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

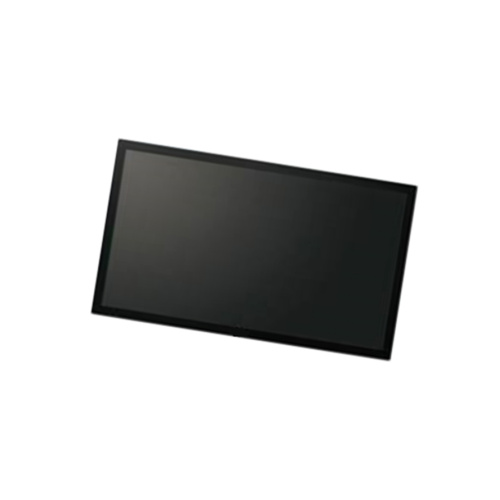

Product Picture:
