P101KDA-AP1 Innolux 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
P101KDA-AP1 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Final Ver.01 which was released out on 7 15 2016, P101KDA-AP1 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 135.36(W)×216.576(H) mm, outline size of 143(W)×227.93(H)×4.1(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 130g (Max.). As a TN, Normally White, Transmissive LCM product, P101KDA-AP1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 25 (Typ.)(Tr+Td); 45 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. P101KDA-AP1 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model |
P101KDA-AP1 |
|
Brand |
Innolux |
|
Diagonal Size |
10.1 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
1200(RGB)×1920 [WUXGA] |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
135.36(H)×216.576(V) mm |
|
Outline Dim. |
143(H)×227.93(V) ×4.1(D) mm |
|
Treatment |
Glare (Haze 0%), Hard coating (3H) |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Response Time |
25 (Typ.)(Tr+Td); 45 (Typ.)(G to G) |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
16.7M 70% NTSC |
|
Light Source |
WLED [4 strings] , 15K hours , W/O Driver |
|
Weight |
130g (Max.) |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
MIPI (4 data lanes) , 51 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |

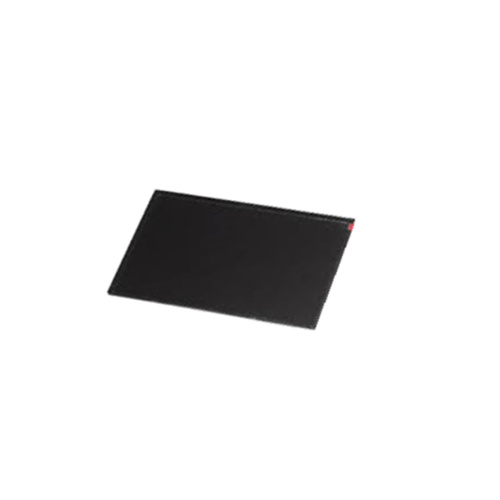

Product Picture:
