DJ101IA-07A Innolux 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) DJ101IA-07A is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 90°C , This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. DJ101IA-07A supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 223.68(W)×125.82(H) mm, outline size of 238.6(W)×148(H)×9.7(D) mm, viewing area size of 226.68(W)×128.82(H) mm, with surface treament of Antiglare, net weight of 360g (Max.). As a AAS, Normally Black, Transmissive LCM product, DJ101IA-07A can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. DJ101IA-07A utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
DJ101IA-07A |
|
Panel Brand |
Innolux |
|
Panel Size |
10.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1280(RGB)×720 , WXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
223.68(W)×125.82(H) mm |
|
Bezel Opening |
226.68(W)×128.82(H) mm |
|
Outline Size |
238.6(W)×148(H) ×9.7(D) mm |
|
Surface |
Antiglare |
|
Brightness |
750 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
AAS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Display Colors |
262K/16.7M 70% NTSC |
|
Lamp Type |
WLED , 20K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
360g (Max.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |

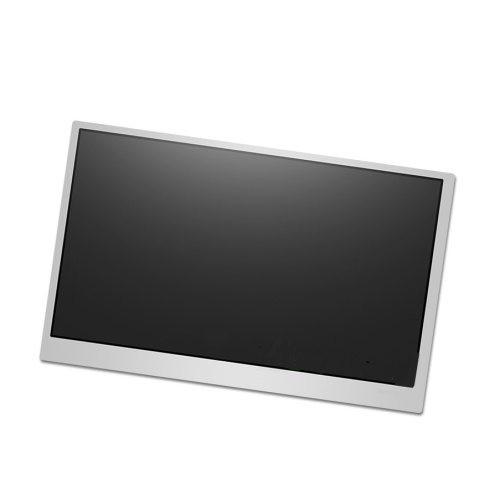

Product Picture:
