N101ICE-G62 Innolux 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
N101ICE-G62 is a 10.1" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 50°C , a storage temperature range of -20 ~ 60°C . This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. N101ICE-G62 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 228.6(W)×149.2(H)×4.6(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 160g (Typ.). As a AAS, Normally Black, Transmissive LCM product, N101ICE-G62 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6 strings WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. N101ICE-G62 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
N101ICE-G62 |
|
Panel Brand |
Innolux |
|
Panel Size |
10.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1280(RGB)×800 , WXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
216.96(W)×135.6(H) mm |
|
Outline Size |
228.6(W)×149.2(H) ×4.6(D) mm |
|
Surface |
Glare (Haze 0%), Hard coating (3H) |
|
Brightness |
350 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
AAS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Display Colors |
16.7M 50% NTSC |
|
Lamp Type |
6 strings WLED , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
160g (Typ.) |
|
Signal Interface |
MIPI (4 data lanes) , 39 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

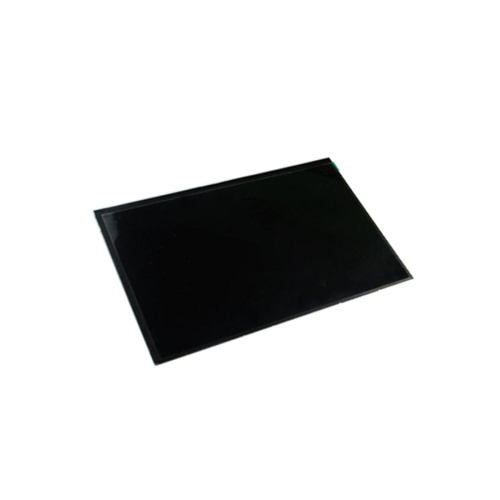

Product Picture:
