N101ICE-G61 Innolux 10.1 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Innolux Corporation (hereafter called Innolux) N101ICE-G61 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 10 24 2013, N101ICE-G61 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 228.6(W)×149.2(H)×4.6(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 160g (Typ.). As a AAS, Normally Black, Transmissive LCM product, N101ICE-G61 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6 strings WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. N101ICE-G61 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Model	N101ICE-G61
Brand	Innolux
Diagonal Size	10.1 inch
Pixel Format	1280(RGB)×800 [WXGA]
Active Area	216.96(H)×135.6(V) mm
Luminance	350 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Support Color	16.7M 50% NTSC
Weight	160g (Typ.)
Frame Rate	60Hz
Type	a-Si TFT-LCD , LCM
Configuration	RGB Vertical Stripe
Outline Dim.	228.6(H)×149.2(V) ×4.6(D) mm
Treatment	Glare (Haze 0%), Hard coating (3H)
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	10/15 (Typ.)(Tr/Td)
Operating Mode	AAS, Normally Black, Transmissive
Light Source	WLED [6 strings] , W/O Driver
Touch Panel	Without
Interface Type	MIPI (4 data lanes) 39 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

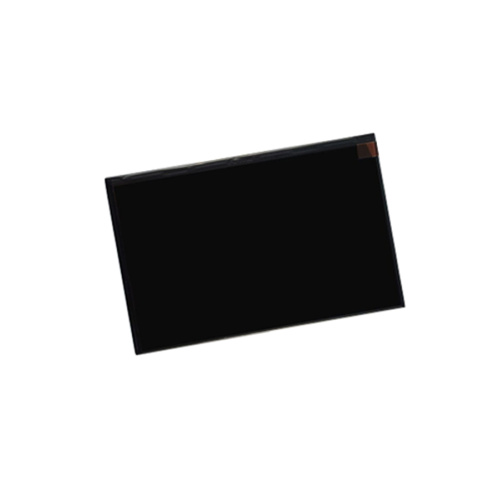

Product Picture:

N101ICE-G61
